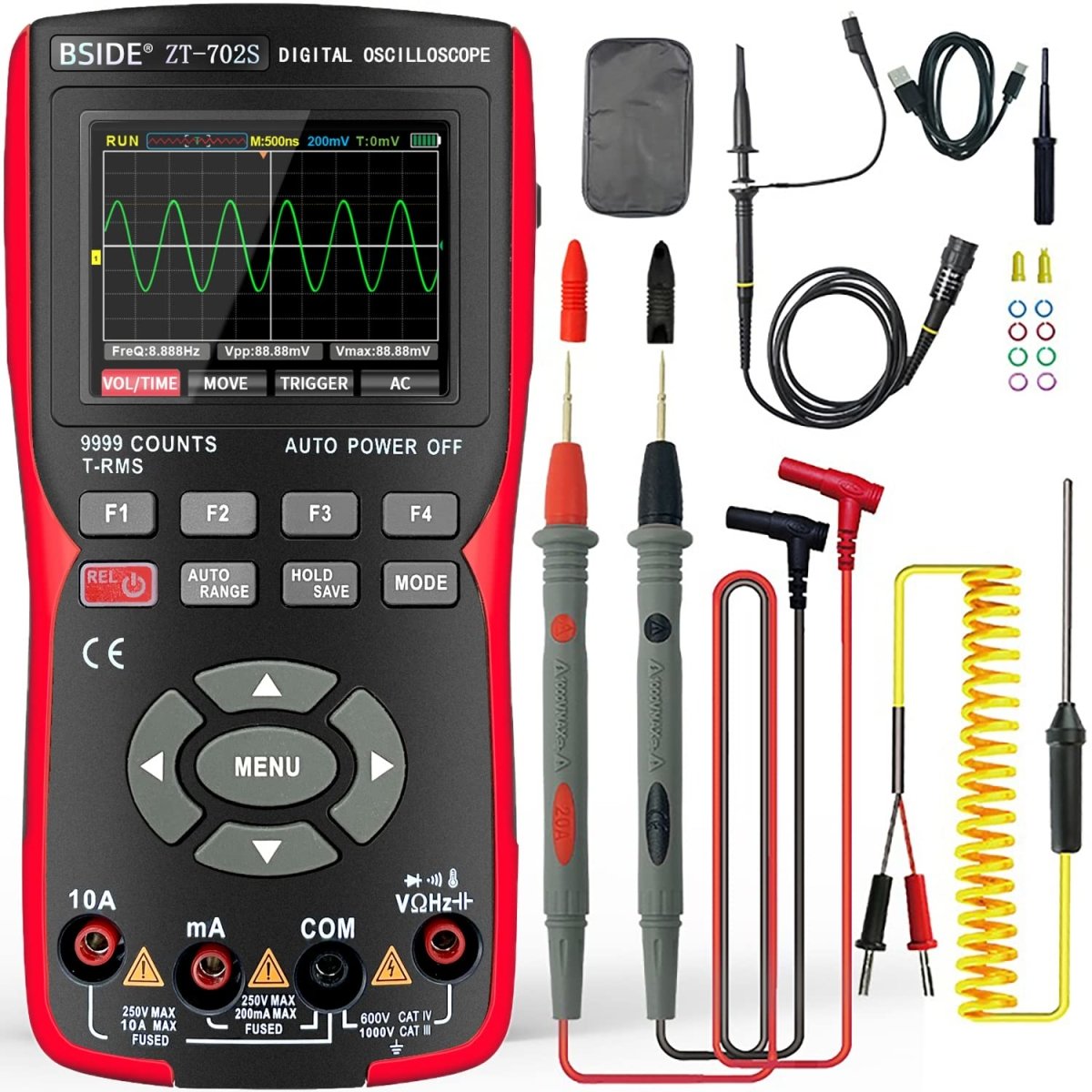

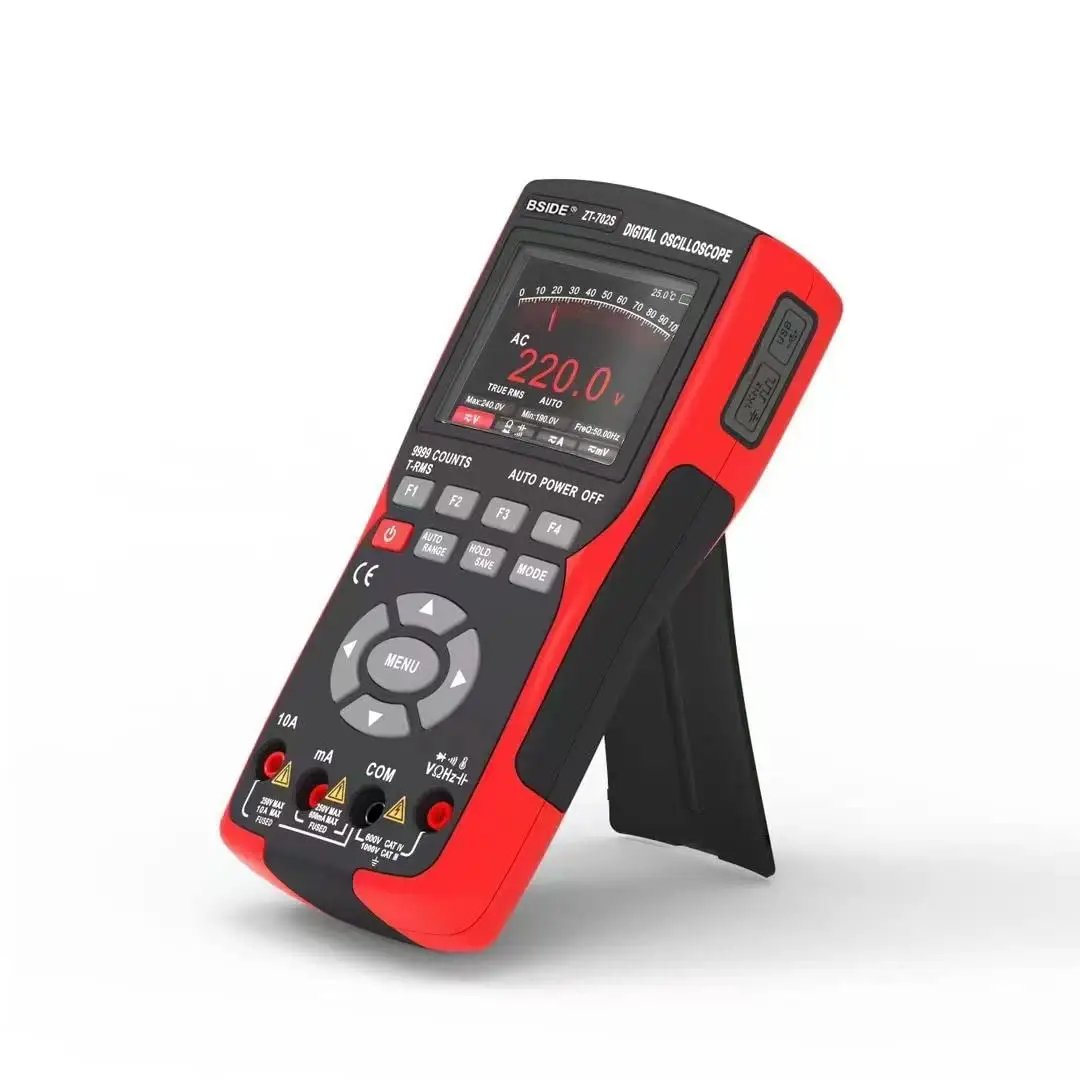

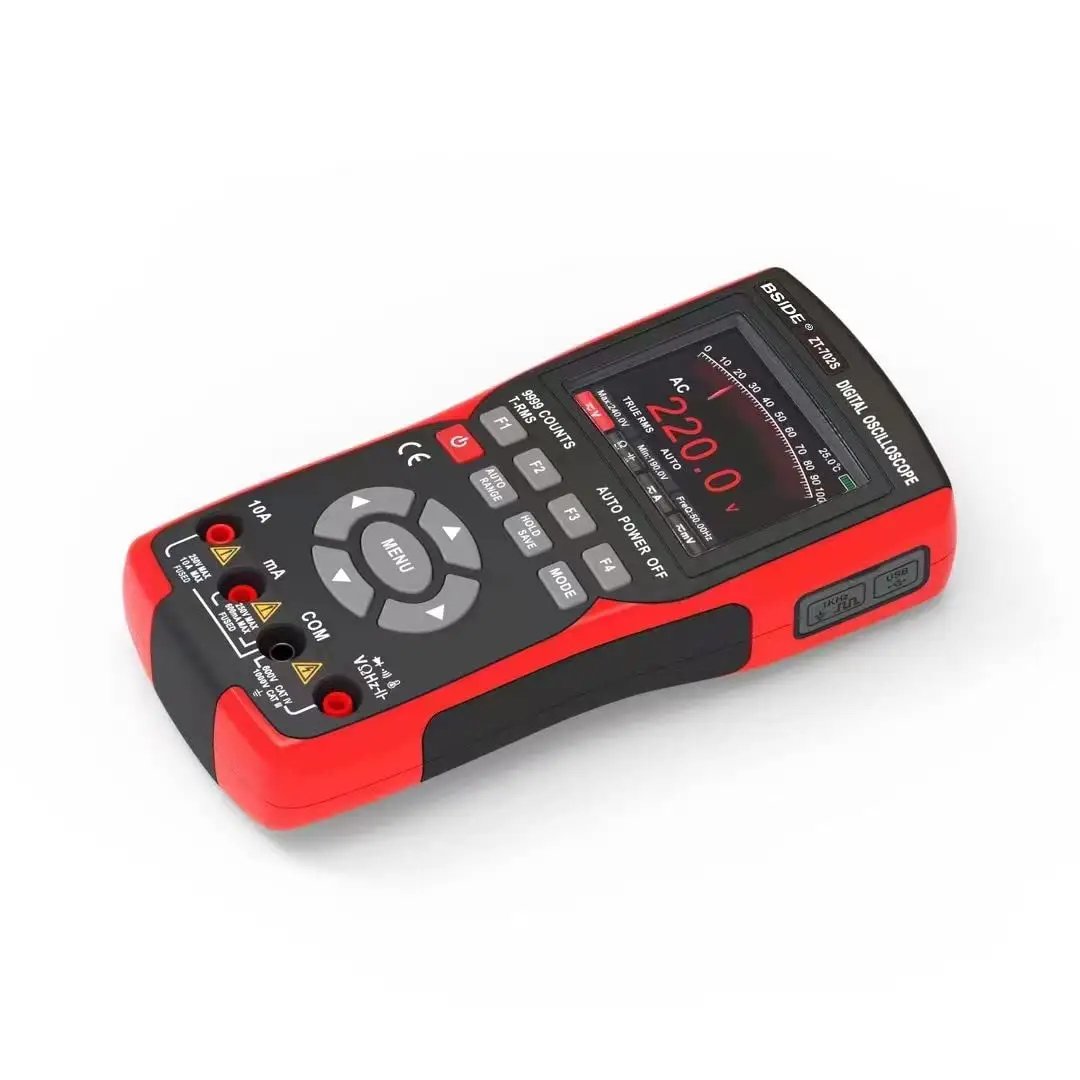

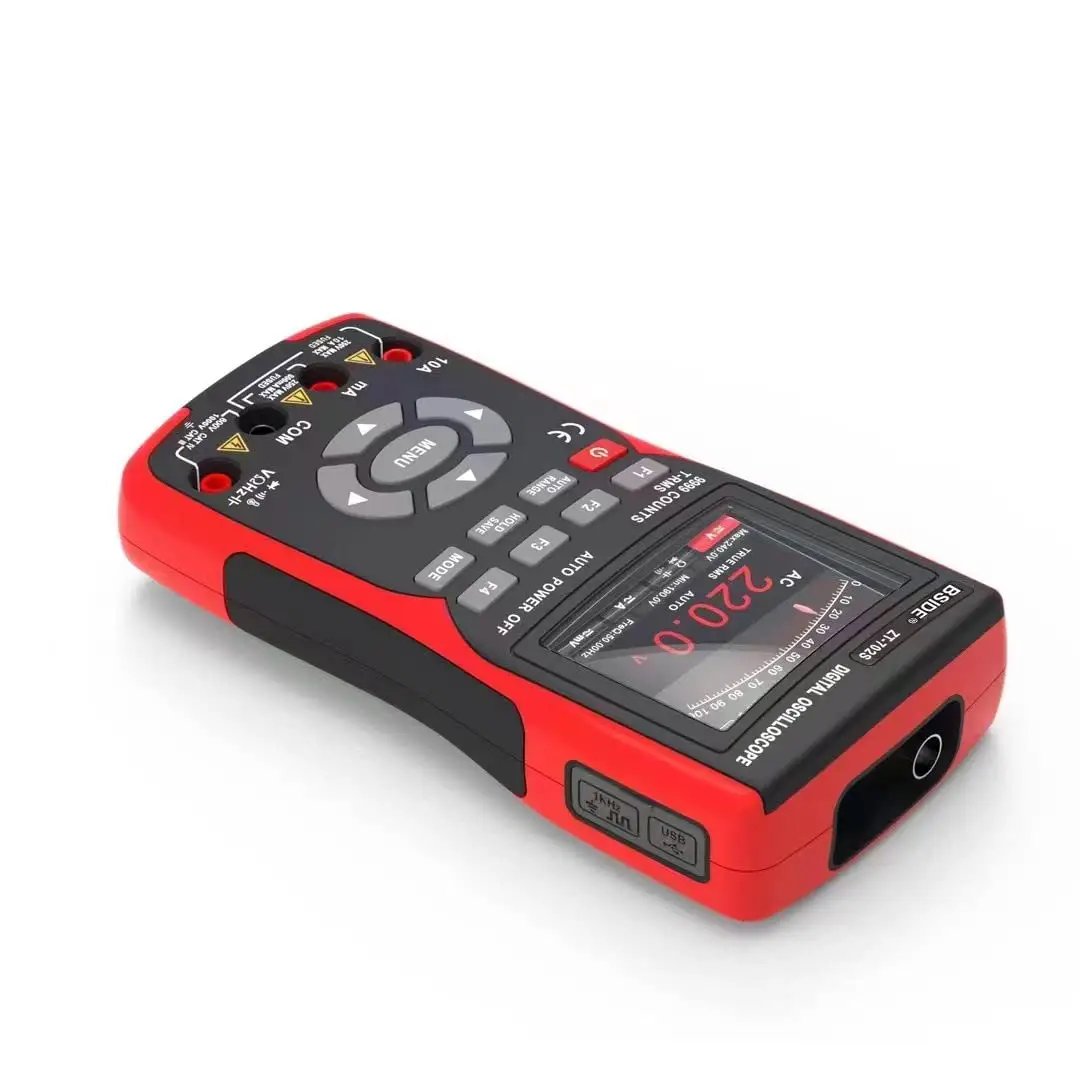

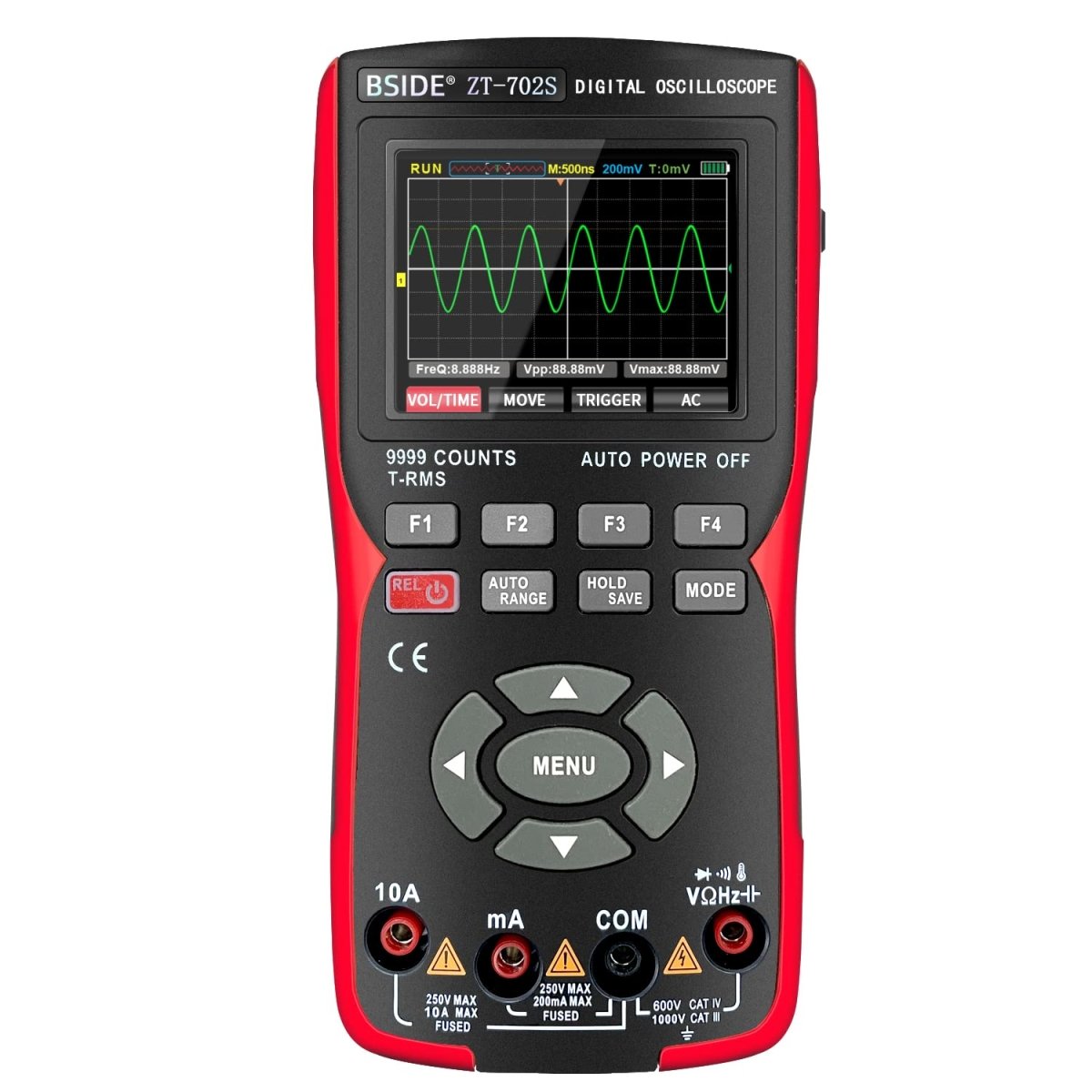

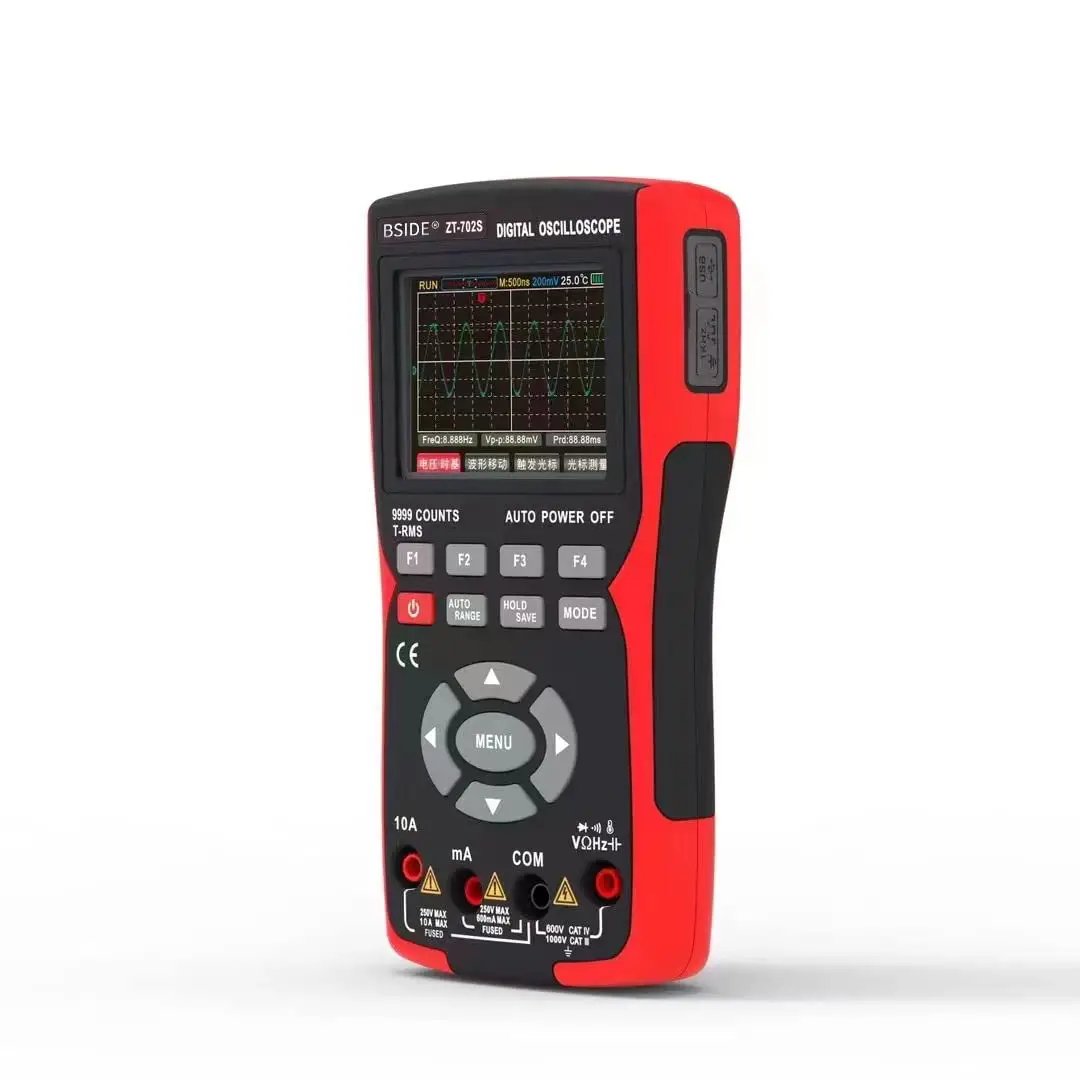

Digital Oscilloscope Multimeter 10Mhz Bandwidth

Digital Oscilloscope Multimeter 10Mhz Bandwidth

Regular price £67.95 GBP
Regular price £133.95 GBP Sale price £67.95 GBP
Sale Sold out

Multimeter Mode: 9999 counts digital multimeter features MAX/Min value, capacitance, current, temperature, diode, voltage, resistance, frequency, continuity test.
Scope Mode: The color LCD digital voltmeter also can be used as a oscilloscope, it features 10MHZ bandwith, 48MSa/s real-time sampling rate, auto-calibration function, memory function, etc.
Data Saved and Transfer: The tested data can be saved and transfered.
Rechargeable: The electricial tester come with a rechargeable 18650 battery & charging cable, you will never worry about power problem.
Carrying Case: Comes with a high quality carrying case, perfect for use while you're on the go.

Features:
Oscilloscope and multimeter
Color LCD display voltmeter
Automatic or manual test function
The backlight of the multi meter is adjustable
The electricial tester is rechargeable
Low battery indication

Specifications:
Display: 9999 counts
Screen Size: 2.8 inch
Bandwith: 10MHz
Real-time smaple rate: 48MSa/s
Input Impedance: 1MΩ,@16pf
Maximum input voltage: 400V (DC+AC peak)
Horizontal SEC range: 50ns/div -20s/div
Vertical sensitivity: 20mV/div -10V/div
DC voltage:
9.999mV/99.99mV/999.9mV/9.999V/99.99V/999.9V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V ±(0.5%+3)
AC voltage:
9.999mV/99.99mV/999.9mV/9.999V/99.99V/750.0V 0.001mV/0.01mV/0.1mV/0.001V/0.01V/0.1 V ±(1.0%+3)
DC current:
9999μA/99.99mA 1μA/0.01mA ±(0.8%+3); 999.9mA/9.999A 0.1mA/0.001A ±(1.0%+3)
AC current:
9999μA/99.99mA 1μA/0.01mA ±(1.0%+3); 999.9mA/9.999A 0.1mA/0.001A ±(1.2%+3)
Resistance:
99.99Ω0.01Ω ±(1.0%+3); 999.9Ω/9.999kΩ/99.99KΩ/999.9KΩ 0.1Ω/0.001KΩ/0.01KΩ/0.1KΩ ±(0.5%+3);
9.999MΩ 0.001MΩ±(1.5%+3); 99.99MΩ 0.01MΩ ±(3.0%+5)
Capacitance: 9.999nF 0.001nF ±(5.0%+20);
99.99nF/999.9nF/9.999µF/99.99µF/999.9µF 0.01nF/0.1nF/0.001µF/0.01µF/0.1µF ±(2.0%+5);
9.999mF 0.001mF ±(5.0%+5)
Frequency:
99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000MHz 0.01Hz/0.1Hz/0.001kHz/0.01kHz/0.1kHz/0.001MHz ±(0.1%+2) Temperature: -20℃-1000℃/-4℉-1832℉ ±(2.5%+5)
Diode: Yes
Continuity: Yes
Power: 18650 battery


Package Includes:
1 x Oscilloscope Multimeter
1 x Test Leads
1 x Oscilloscope probe
1 x Thermocouple
1 x Carrying Case
1 x Screwdriver
1 x User Manual
