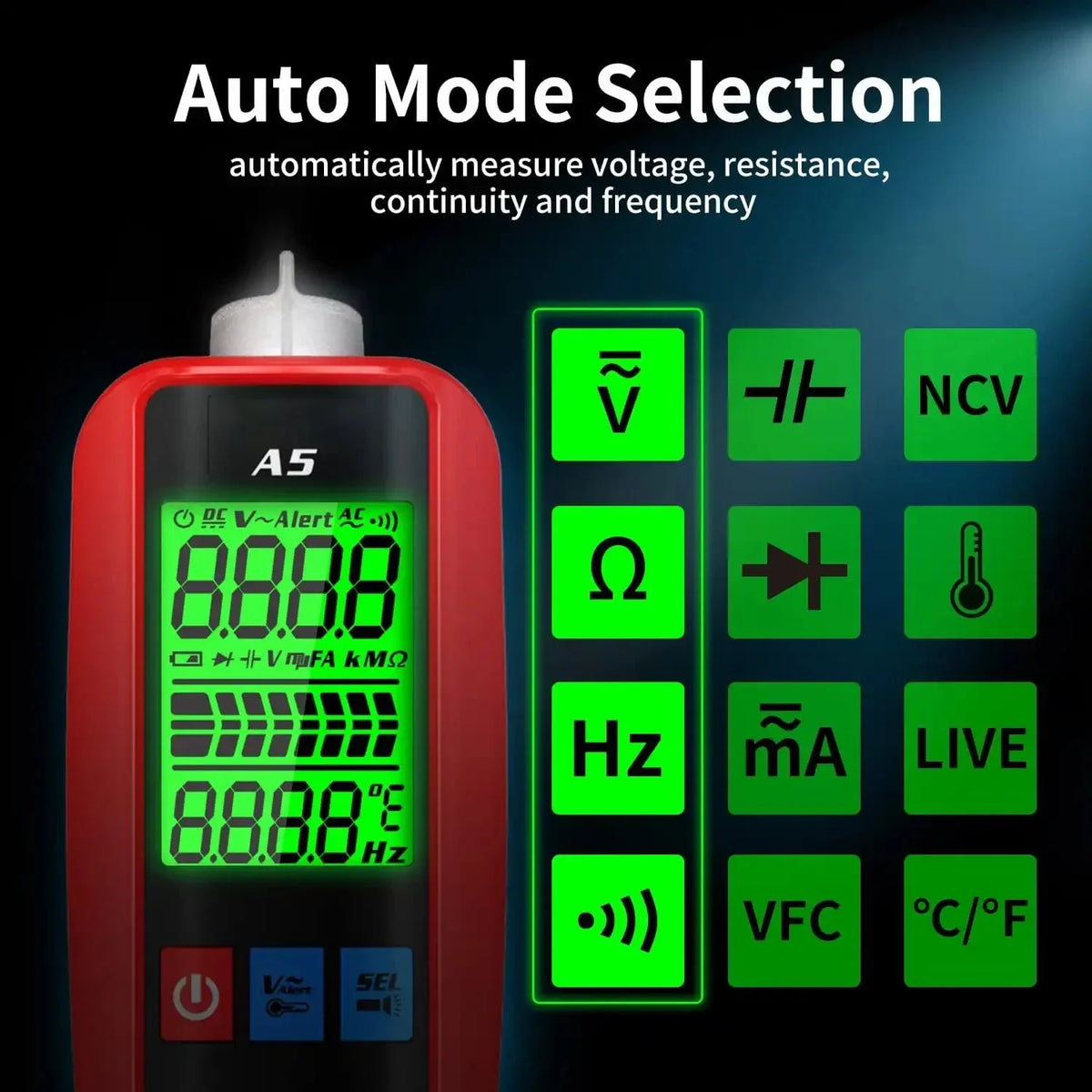

6 Functions Automatic Identification: Electricial amp meter can automatically identify AC voltage, DC voltage, AC current, DC current, resistance and continuity with the best resolution, without selecting a mode or range.

Red/Green Backlight: The digtal multi meter has a large LCD display, with red/green backlight. In addition, this multimeter can show 3 test results on the screen, such as voltage, frequency and analog bar.

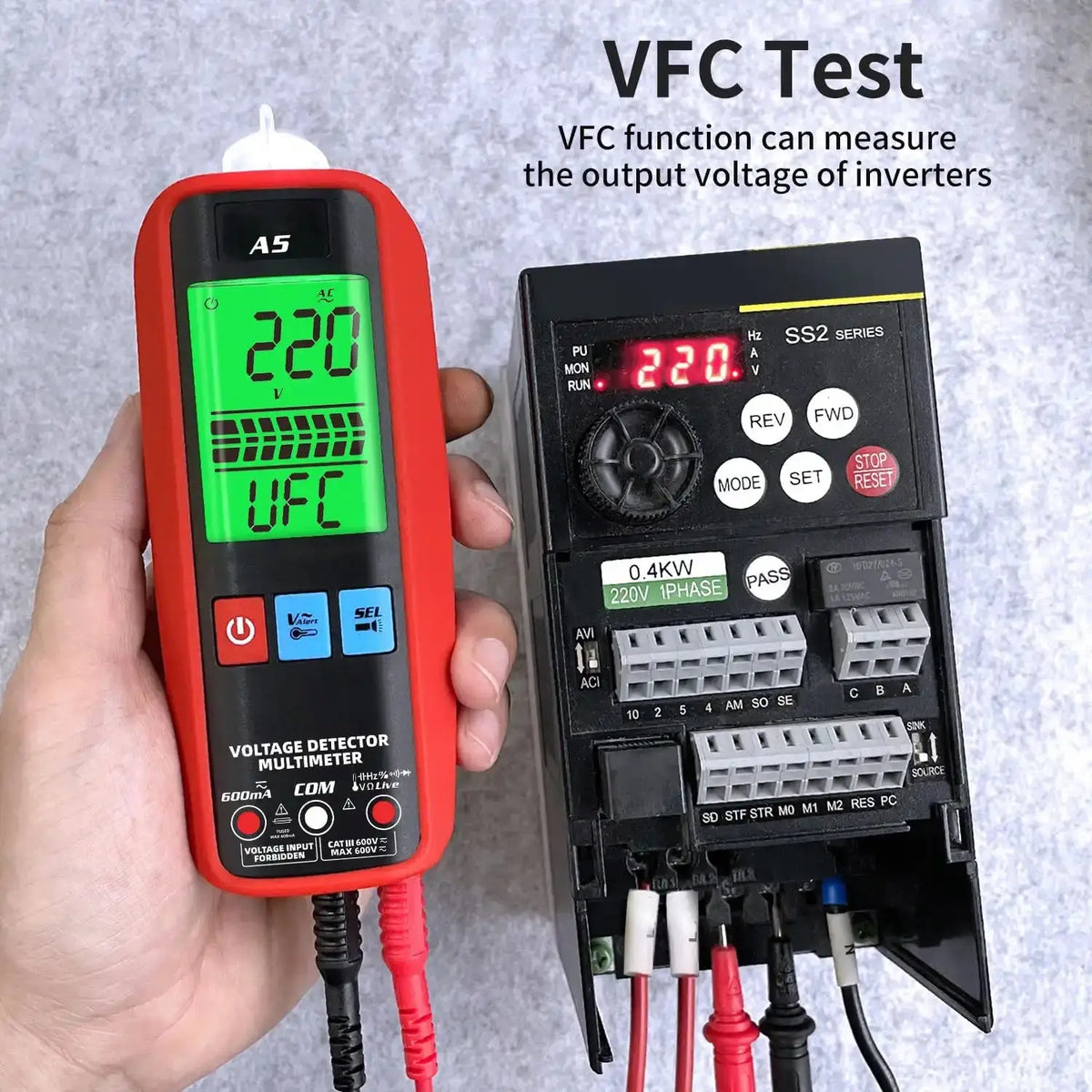

VFC Function: The digital voltmeter can measure the output voltage of inverters. Also can be used to test capacitance, temperature, amp, diode, continuity, ohm, hz, v-alert and live wire. With this smart digital voltmeter, you can solve industrial, vehicle and household electrical problems, etc.

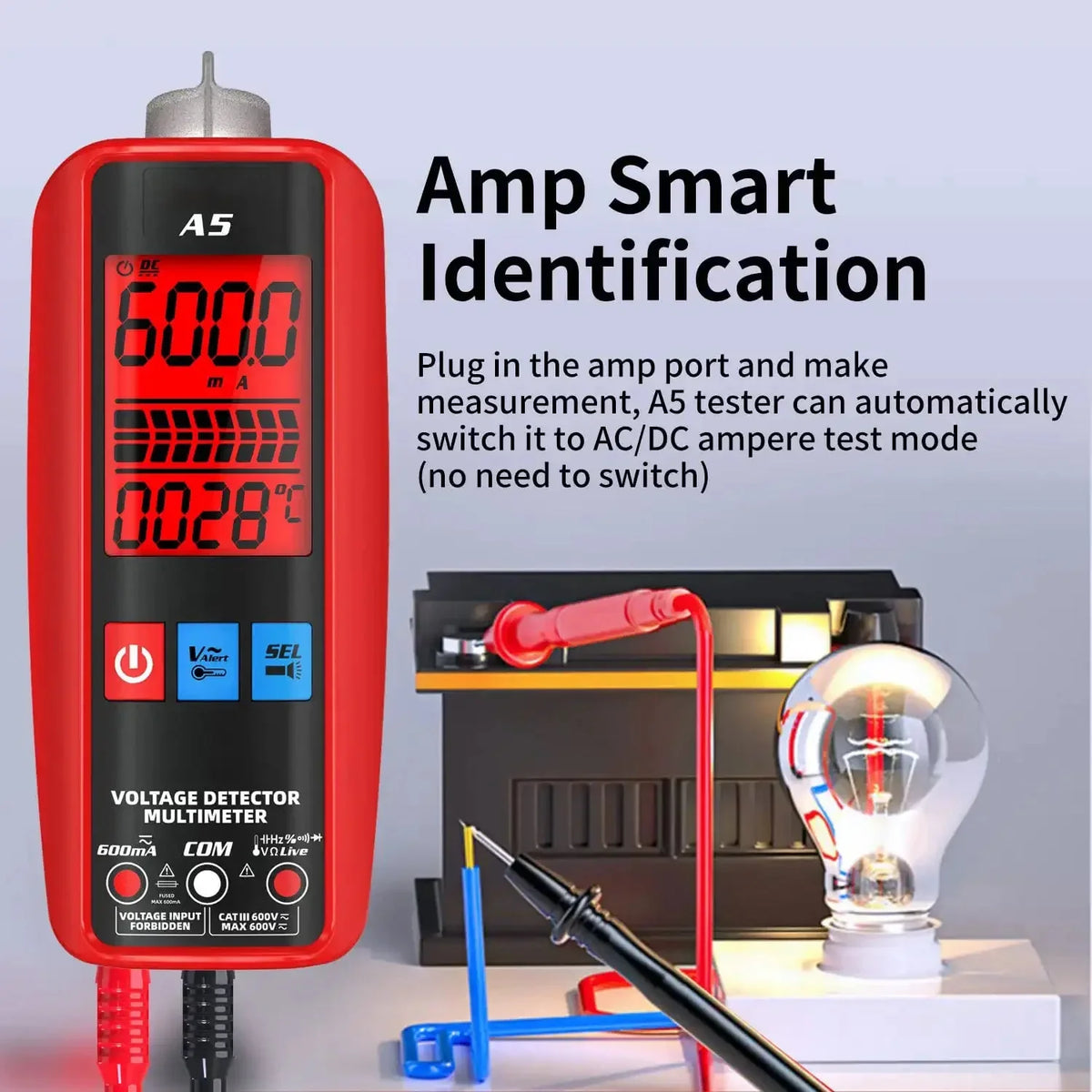

Amp Test Automatically Activation: The electrical amp tester can automatically activate current test function with red backlight (no need to switch, just plug the test lead into the amp port).

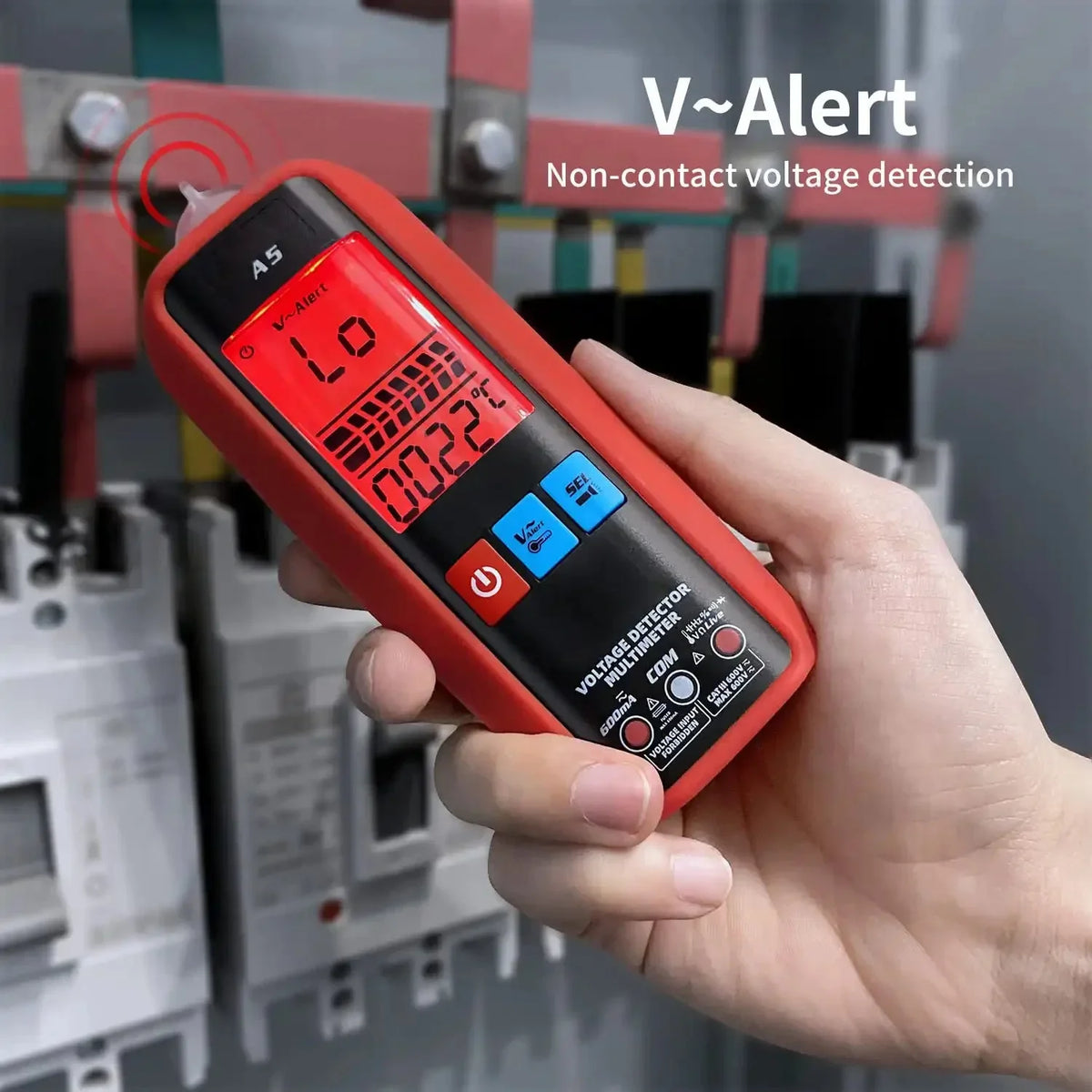

No-contact Voltage Tester: The intelligent multimeter can also be used as a professional non-contact voltage tester. The sensitivity of the volt detector is adjustable.

Product Description

Features:
Portable multimeter with large screen
Intelligent tester with red and green backlight
Auto and manual mode electrical tester, both for beginners and professional users
AC/DC voltage and current, resistance, continuity and frequency test

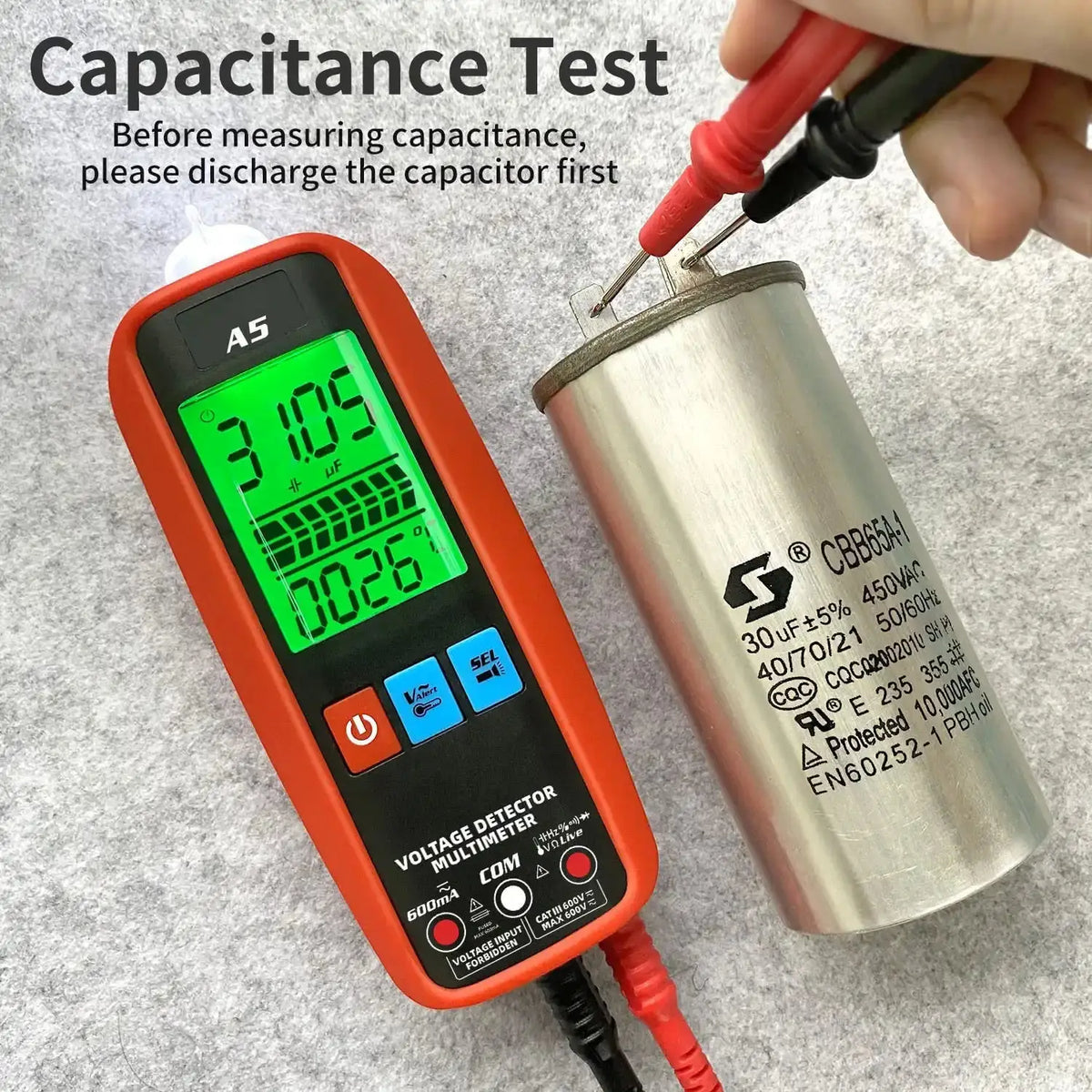

Capacitance, diode, VFC, temperature, V-alert test and live wire check
Also can be used as a non contact voltage tester with adjustable sensitivity

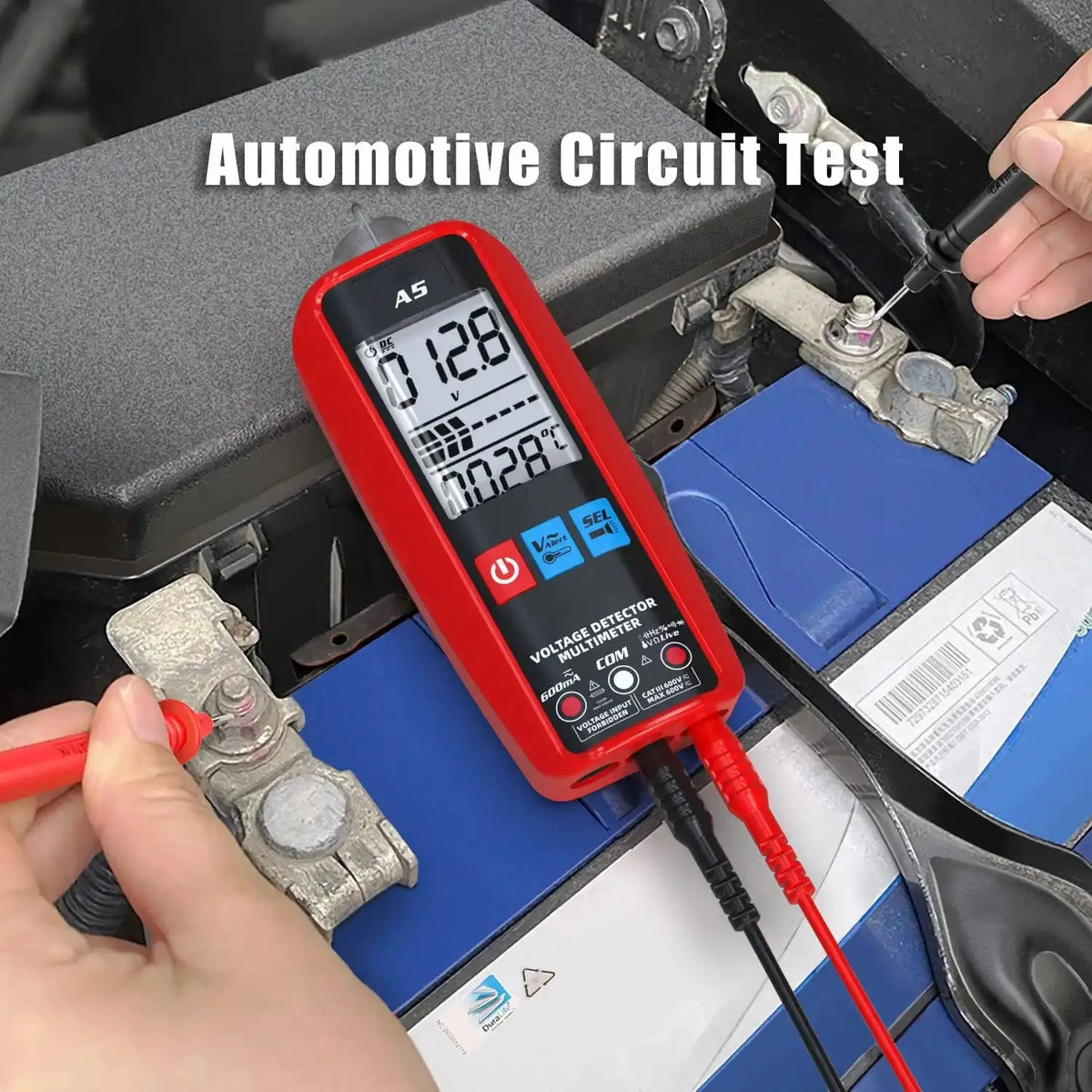

Great tools for solving industrial, automotive, household electrical issues, etc
Auto range, Auto power off, low battery indication

Specifications:
Display: 6000 counts
Screen: 2.2 inch
DC Voltage: 0-620V(DC mode)/0.8-620V(Auto mode) 0.01V ±(0.8%+3)
AC Voltage:
0-620V(DC mode)/0.8-620V(Auto mode) 0.01V ±(1.2%+5); 10-620V(VFC Mode) 1V (4.0%+3)
DC Current: 1.0-610mA 0.1mA ±(1.5%+3)
AC Current: 1.0-610mA(40-1000Hz) 0.1mA ±(1.5%+3)
Resistance: 0Ω-6MΩ 0.1Ω ±(1.2%+3)；6MΩ-60MΩ 0.1Ω ±(2.0%+10)
Capacitance: 0.5µF-6mF 0.001µF ±(3.5%+8); 6mF-60.00mF 0.001µF ±(4.5%+10)
Frequency: 0-9999Hz(900mVrms-20Vrms) 0.001Hz ±(2.0%+10)

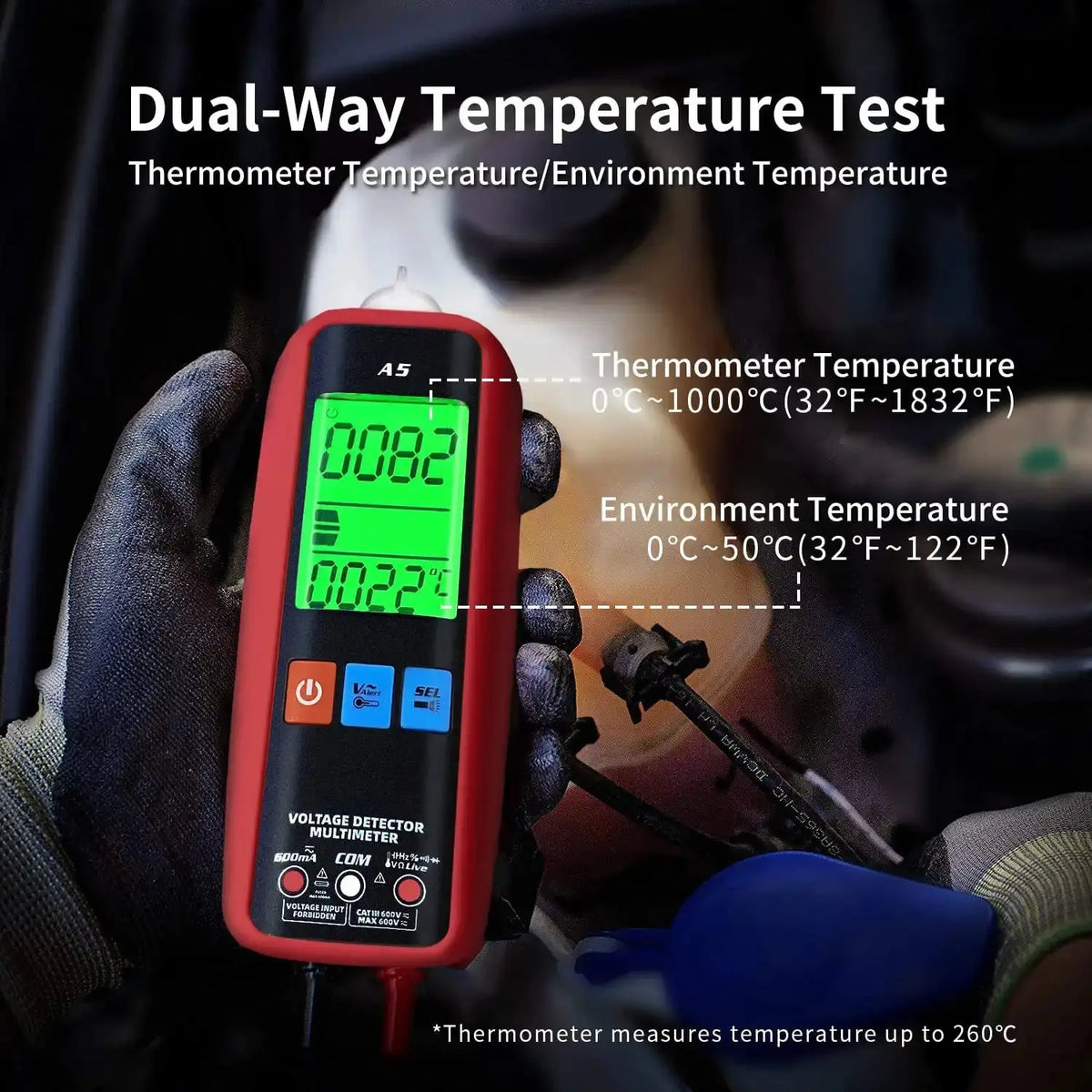

Temperature: 0-50℃(32-122℉) 1℃/1℉ ±(1.5%+2); 50-1000℃(122-1832℉) 1℃/1℉ ±(2.0%+3)
V-Alert(Non-contact Voltage Detection): Yes
Diode: Measures diodes within 3V
Continuity: If the resistance is less than 50Ω, the beeper sounds
Live Wire Check: Yes
Ambient Temperature: 0-50℃ ±2℃

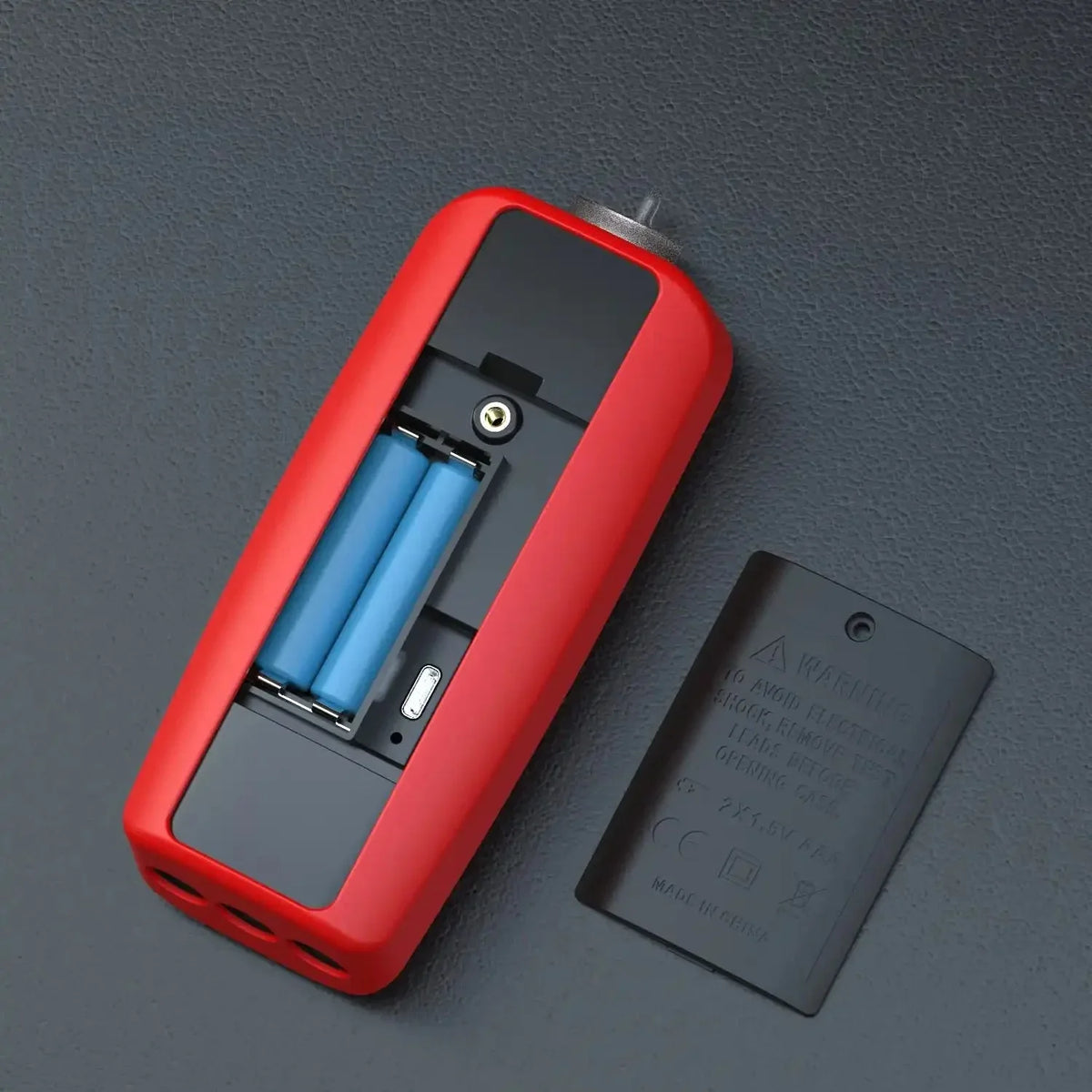

Power: 1.5V (AAA) x 2
Size: 139.7 x 53.7 x 32.8 mm
Weight: 92g

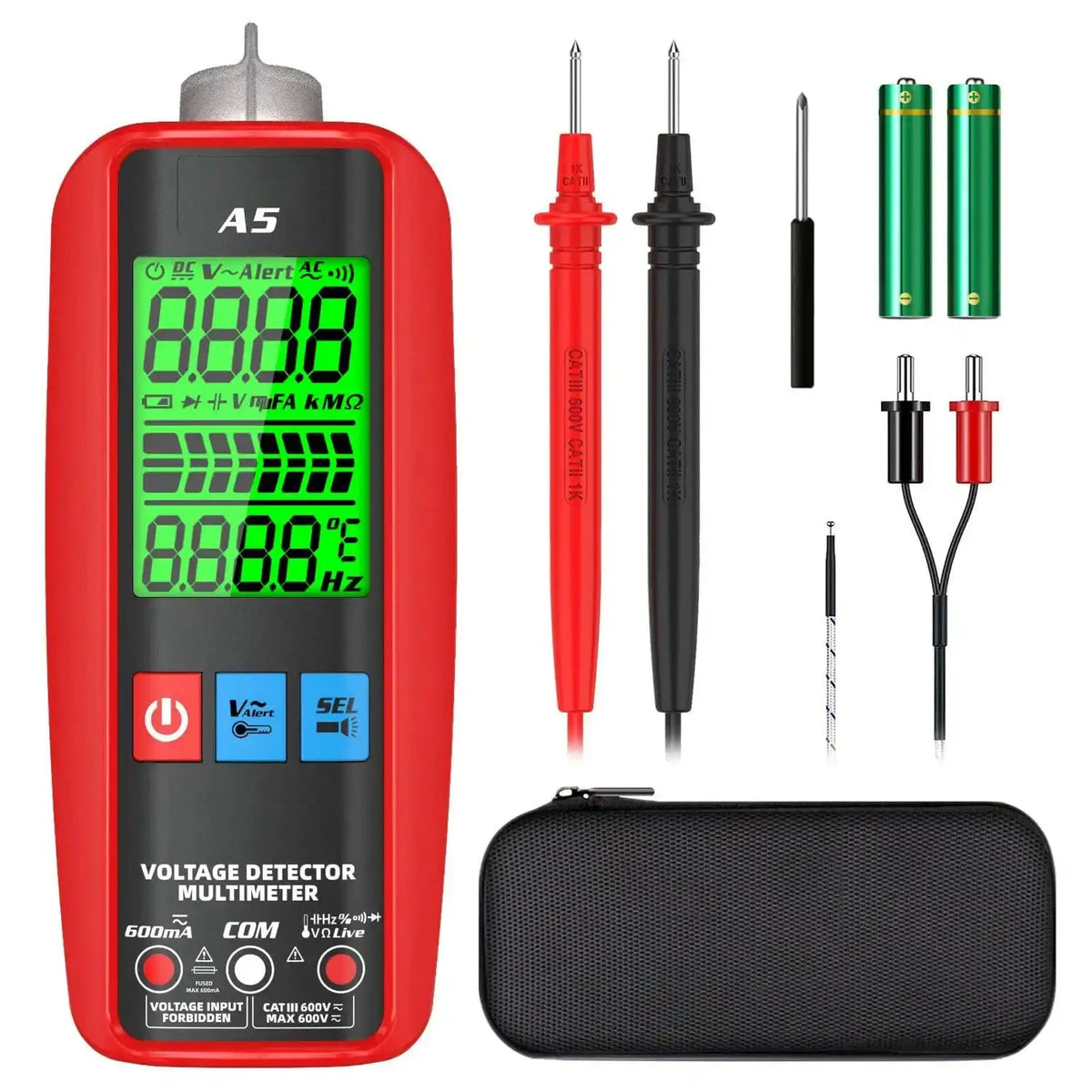

Package Includes:
1 x Electricial Amp Meter
1 x Test Leads
1 x Thermocouple
1 x Carrying Case
2 x AAA Batteries
1 x Screwdriver
1 x User Manual
