Product Characteristic

• Solid Metal Construction: Made with a full-metal design, the Mini Metal Drilling Machine is built to last. Its motor casing, headstock, and all key components—no plastic parts here—are crafted from metal for superior durability and stability.

• Quiet, High-Speed Motor: This drill is equipped with an ultra-quiet, high-rotary-speed motor, featuring a custom-built cooling fan that keeps it running smoothly without overheating.

• Premium Finish for Lasting Protection: Components feature dual-surface treatments, including electroplating and anodized ink-jet coating, which add a polished look and provide lasting rust resistance.

• Precision T-type Aluminum Bed: The machine bed is crafted from high-quality, European-standard T-type aluminum, ensuring smooth and precise movements for every project.

• Built-in Safety Features: With 3C quality-certified transformers, this machine offers over-current, over-voltage, and over-heat protection for worry-free use.

• Long-Lasting Stability: Fixed by square nuts, the connection pieces are designed to withstand long-term vibrations, preventing screws from loosening over time.

• Enhanced Accuracy with Dovetail Structure: The dovetail construction of the connection pieces improves overall stability and ensures accurate alignment across all machine parts.

• Child-Proof Safety Design: Thoughtfully designed with rounded edges to prevent any accidental scratches or injuries, making it a safer choice for any workspace.

• Versatile Applications: Perfect for soft metals, acrylics, and engineering plastics, this drill easily handles materials like plywood, organic glass, thin aluminum sheets, and aluminum-plastic panels.

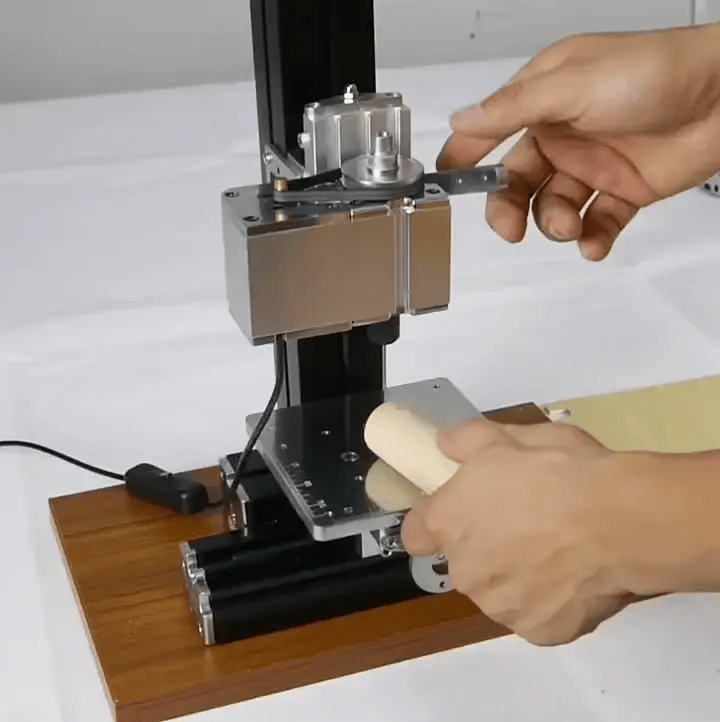

• User-Friendly Universal Rocker Control: With up-and-down control via a universal rocker, it’s ideal for drilling tasks on softer metals like gold, silver, copper, and aluminum.

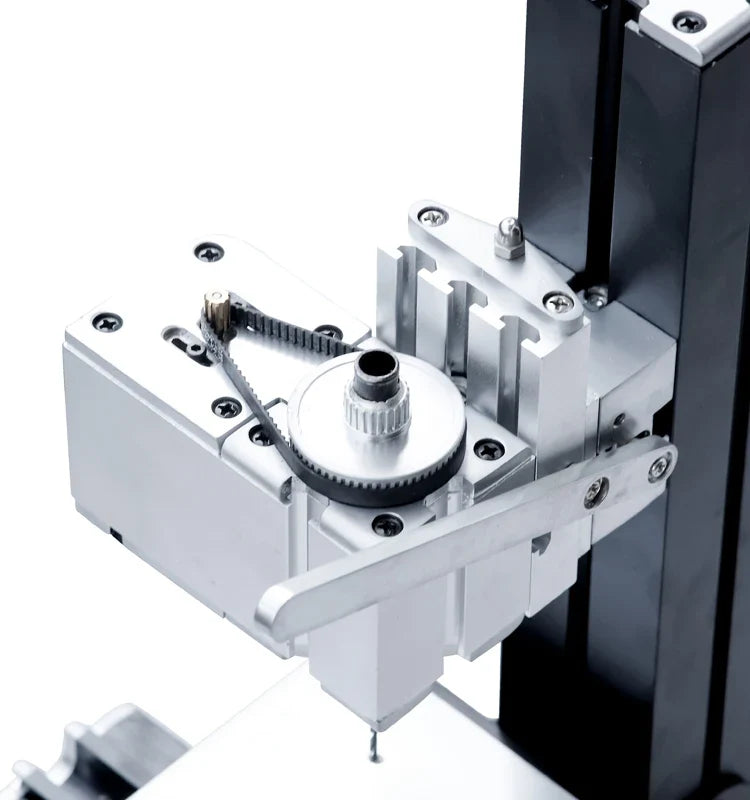

• Secure Clamping System: The chuck is fastened with a hexagon nut to keep drill bits, cutters, and lathe drivers tightly in place for precise work.

Technical Parameter

1.Hi-power motor is adopted with all drive axes, maximum speed up to 20,000 rpm

2.Input voltage/Current /Power: 12V/3A /36W

3.Input Voltage of Switch Power Supply: 110V - 240V

4.X-axis slider travels: 150mm

5.The chuck and collets is 1 to 6mm

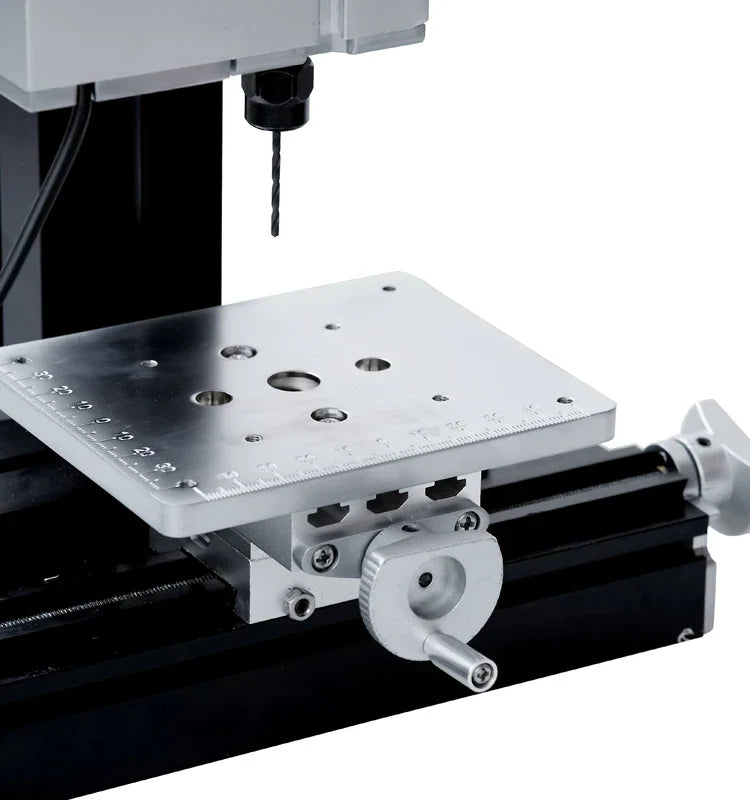

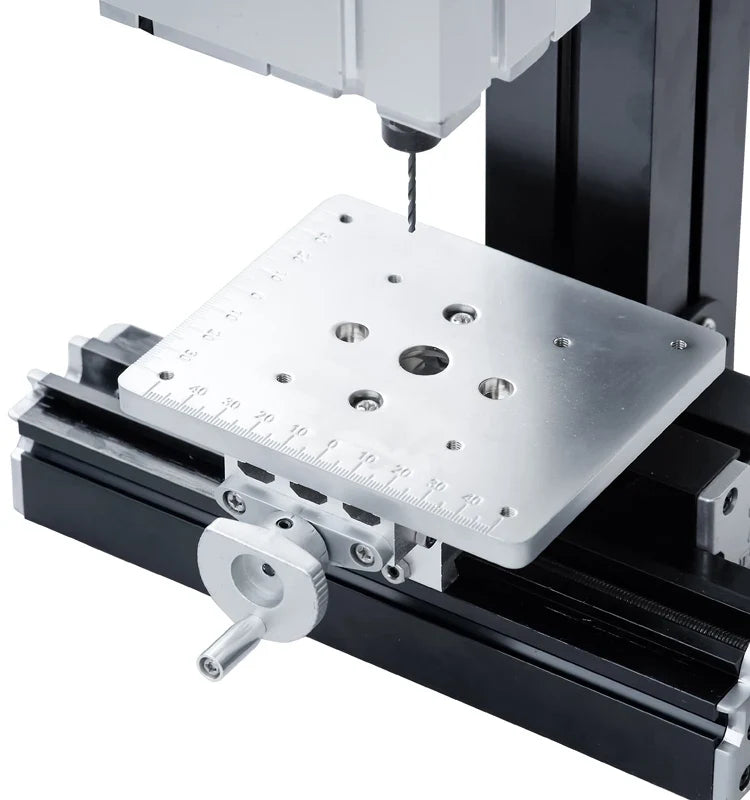

6.Drilling table area: 120 X120 mm, molded with accuracy of 0.02mm scale line, that's great helpful.

7.The whole hand wheel is made of super alloy material, which be assembled in X, Y and Z axis. Featuring with 0.02mm scale line, the hand wheel increases the precision when processing. (The scale lines are molded at one time, aren't sticky label)

8.3/4 semi-circular structure designed hand wheel, that's quite convenient for dismantling connection blocks.

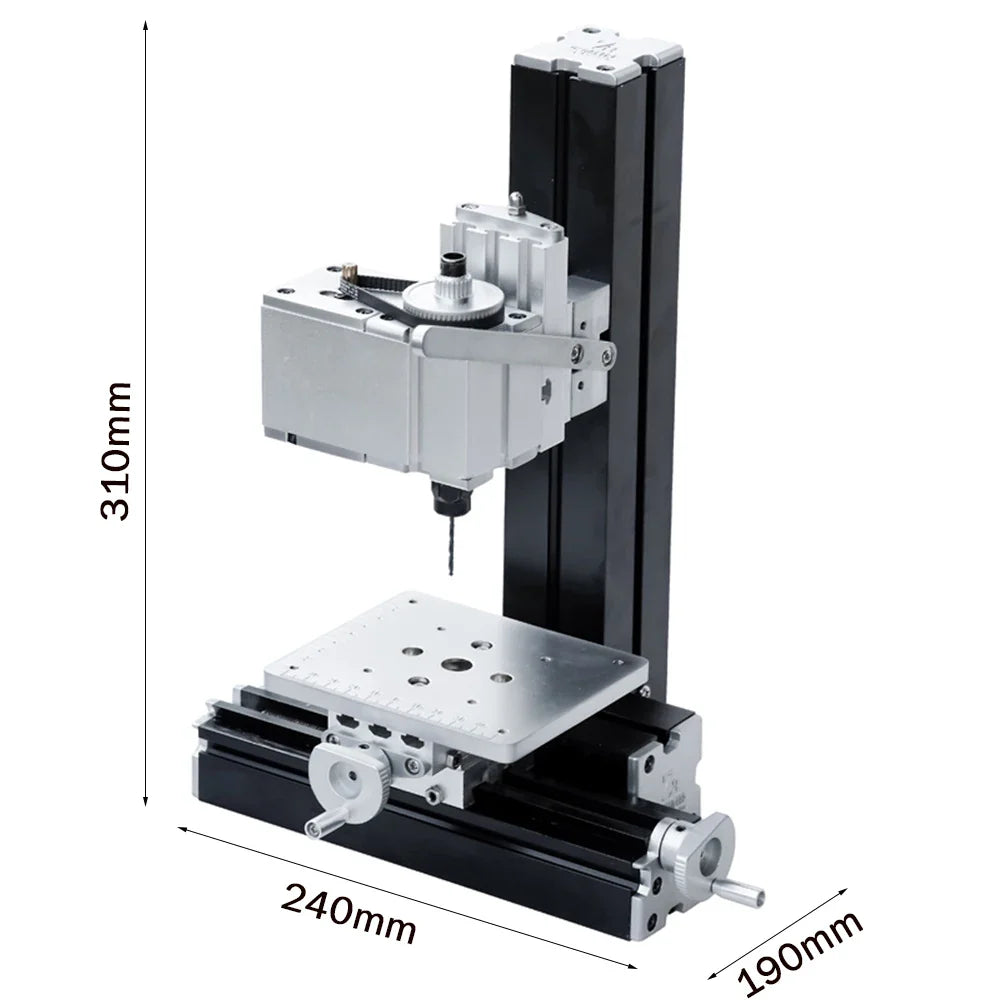

9.Machine size:250mm*208mm*300mm

Product FAQ

Question1: What's the usage of ZR miniature machine tools?
The miniature machine tools have the same features as big industrial machines, the only differences are their size and the 12V drive. You can use it for DIY model making and some little crafts, which is also able to process hard wood, soft metal, alloy etc...
Based on its modularity and the child friendly use, that's ideal & creative product to inspire children hand-on skill & innovative ability.

Question 2: Is it easy to assemble and operate the miniature machine tools?
What we provided is the installed complete machine tools, meanwhile, there is full set of English manual & guide videos to show you how to use it smoothly. If you still have any query, please contact us by e-mail / Whatsapp/ mobile phone for online service.

Question 3 : How about the after sales service?
Firstly, quality guaranteed by the authoritative certificate of CE, RoHS, FCC , ISO9001:2008
Second, free spare parts and 1 year warranty
